Яхта COCA VI

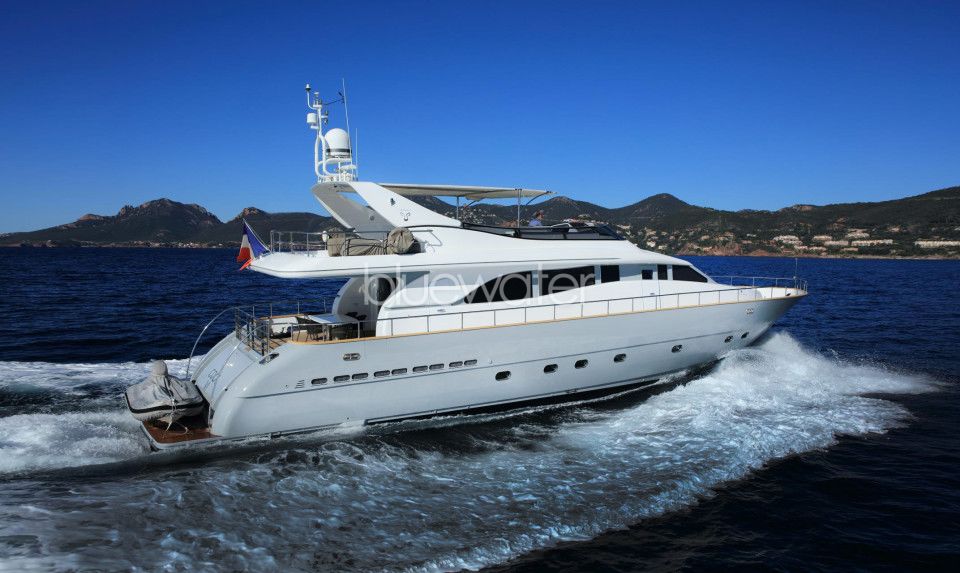

COCA VI is one of the Leopard 27 Fly series built by Cantieri Navale Arno of Italy in 2000 and refitted in 2014. The yacht accommodates 6 guests in 3 spacious cabins offering great volumes over her two decks. Her interior is modern and fresh with a vast saloon comprising of two sofas and a dining area. A spacious area for dining can be found on the aft, the sundeck has a large sunbathing area with comfortable sun pads and an appealing Jacuzzi is situated on the fly deck. Since her launch she has been meticulously maintained by her Owner who sends her to the shipyard every winter for maintenance and refit work. COCA VI is set apart by her contemporary interior and high-tech features. In 2014 the hull was repainted to light grey to give her a more modern feel. She boasts an excellent charter record.

• Tender Capelli 3,20m, 30hp

• Jetski Seadoo 2 pax, 200HP

General

Type: Leopard 27 Fly

Year:2000/2014

Builder: Cantiere Navale Arno

Hull & Superstructure: GRP

Designer: Paolo Caliari Design

Interior Designer: Cantiere Navale Arno

L.O.A: 26.80m / 87’11”

Beam: 6.05m / 19’10”

Draft: 2.34m / 7’08”

Displacement: Empty: 58t

Half Load: 63t approx.

Full load: 68t approx.

Flag: French

Classification: BV



Capacities

Fuel Capacity: 8700 litres

Water Capacity: 2000 litres

Watermaker: 220 litres per hour



Speed and Range Under Power

Maximum Speed: 27 Knots approx.

Cruising Speed: 20 knots approx.

Range: 300 miles approx.



Machinery

Engines: 2 x 1800hp MTU 16V 2000 M90

Engine Hours: 3115 hrs as of December 2022

Transmission: ZF

Generators & Electricity

Generators: 2 x Kohler 25 kW (Port generator replaced 2018)

Generator Hours: Starboard: 3846 hrs as of December 2022

Port: 1000 hrs as of December 2022

Electricity

Electrical system is based on three different voltages:

1.220v 50hz one-phase AC, supplied by generators or shore power, each unit feeds different uses and reversing the uses is possible in case of failure in one of them.

2. 24v DC on three different battery units:

a. 700 a/h utility board services

b. 320 a/h engine batteries

c. 150a/h radio batteries

3. 12v DC to feed stereo system and radio receivers

4. 12v DC for the generator units, by means of an independent battery.

Air Conditioning

Refrigerating engine located in engine room and ventilation units located in various rooms,

controlled by independent thermostats, supply air conditioning throughout the yacht.

Other Machinery

Bowthruster + Sternthruster: Hydraulic with joystick at wheelhouse and flybridge

Watermaker: Idromar

Galley Equipment

• Stainless steel sink

• Two Refrigerators

• Cooking hot plate with four electric plates

• Dishwasher

• Microwave/convention oven

• Extraction hood with expanding filter

• Deep freeze

• Storage cupboards/drawers

• Washing machine

• Tumble dryer

Communication, Navigation & Entertainment Equipment

Communication Equipment

• Interior PABX system

• 1 x satcom

• 5 x Siemens telephones

• 1 x VHF DSC FORUNO

• Sat TV dish

Navigation Equipment

• 1 x Furuno radar

• 1 x Navtex

• 1 x Furuno Chartplotter

• 1 x trifunction gauge

• 1 x Digital sounder Furun

• 1 x speedometer Dataline

• 1 x calculator for Dataline functions

• 1 x Simrad wind indicator

• 1 x Furuno GPS

• Bow Thruster + Stern Thruster control

• 1 x Autopilot Furuno

Bridge Instruments

• Control lever for acceleration and reverse

• Magnetic compass

• Full set of electric controlling instruments for engines

• Push button control for engine start/stop

• Gauges for fuel and water tanks

• Angle indicator

• Fuel transfer pump warning light

• Daily tanks low-level alarm device

• 2 x MTU control panels

• Control and warning lights for flaps, windlass, horn, side lights and various other equipment

• Electric pilot seat

Engine Room Instruments

• Reverses oil pressure gauges • Engine oil pressure gauge

• Fuel visible level devices • Engine water temperature indicators

Entertainment Equipment

Saloon

Samsung TV

Satellite box

Sony Surround sound DVD/CD

Owner’s Stateroom

LG TV

Satellite box

Sony Surround sound DVD/CD

VIP Stateroom

JVC TV

DVD/CD Player

Bridge

CD Player

Foredeck

CD Player

Flybridge

CD Player

Deck Equipment

• 2 x aft deck warping winches

• 2 x anchor windlasses with warp of 2Kw with bridge and bow control

• 2 x 50kg anchors with 12mm galvanised iron chain, 100m long

• Bow shield with anchor locking and washing plant

• 2 x side fair leads

• 2 x mooring bits and 2 x fair leads at bow

• Built in aft deck ‘C’ shaped seating & table

• 4 x side bits

• 1 x step ladder

• 1 x remote controlled electric gangway with handrail Benzanzoni

• 2 x boat hooks

• 2 x 29mm mooring ropes and 10mm chain

• 1 x 20mm, 100m towrope

Flybridge

• Teak deck

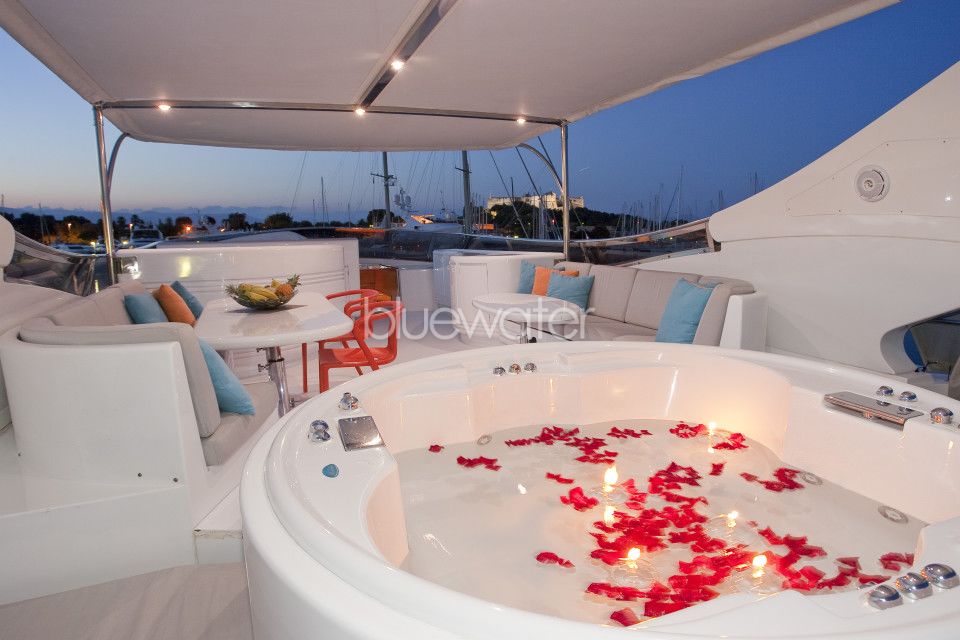

• Aft Jacuzzi and Sunbathing

• 2 x seating with table

• STB furniture

• Barbeque

• Stainless steel rigid Bimini top

• Port bar with sink, ice maker, 2 x fridge

• Covers for all flybridge furniture and instruments

Flybridge Instruments

• Furuno autopilot repeater

• Furuno VHF

• Furuno Navnet chartplotter

• Furuno depth sounder repeater

Safety & Security Equipment

Full Safety Equipment

Fire extinguisher system:

Semi-automatic system with direct control in engine room

Hand operated portable powder extinguishers installed in all rooms including the engine room and

radio room.

Sea-water system

Smoke and heat detectors in all rooms.

Exclusions

A complete list of exclusions is available upon request.

There are 3 guest cabins sleeping 6 guests and 1 crew cabin sleeping 3 crew.

The interior is beautifully finished in varnished wood.

Air-conditioning units as follows:

2 x units Master cabin

2 x units VIP cabin

1 x unit port Guest Cabin

2 x units Bridge

2 x units Saloon

1 x unit Dining room

1 x unit Galley

1 x unit Crew Quarters
